Hex Scatterplots: When a Thousand Points Need a Honeycomb

Hex scatterplot

---

A plain scatterplot with three thousand points is not a chart. It is confetti.

Every marker fights its neighbor. Overplotting hides structure. You squint, toggle opacity, and still cannot tell whether the cluster is one hot region or twenty unlucky coincidences stacked on the same pixel.

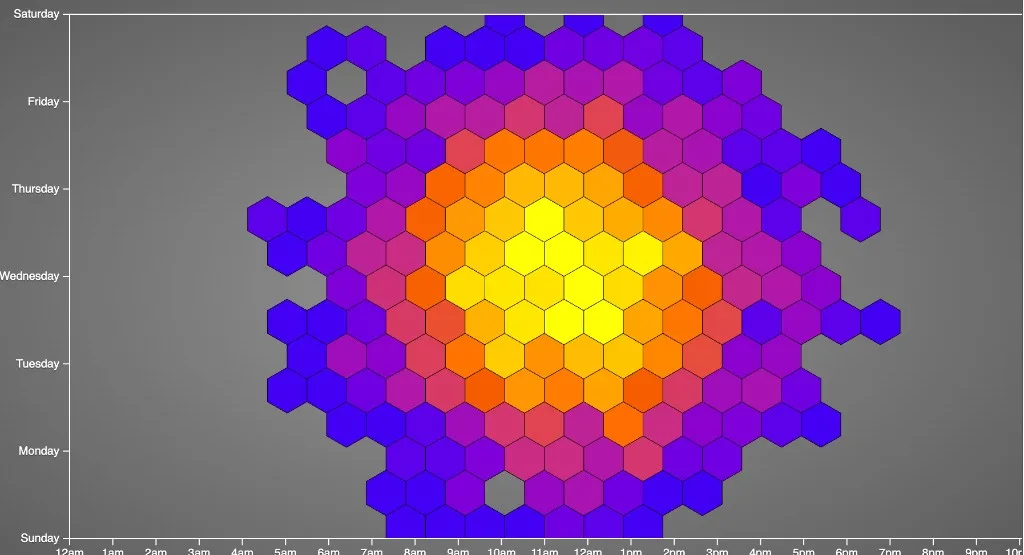

Hex binning is the elegant fix: snap the plane into a honeycomb grid, count what lands in each cell, and paint the hexagons by that count. You keep the spatial honesty of a scatter—where things pile up still matters—but you trade per-point ink for readable density. I built one years ago in pure D3 on CodePen: three thousand synthetic points, d3.hexbin, a blue-to-coral scale, and axes that read like a week-by-hour grid. It is still one of the most satisfying small demos in my notebook.

Try it live — CodePen embed

The iframe keeps the pen’s styles isolated from this site’s theme. Pan your eyes across the hive: cool blues where only a few points fell, warm reds where the bin filled up.

Blank iframe? Open the pen on CodePen.

The data here is synthetic: d3.random.normal draws x and y in pixel space so the cloud blooms around the center of the plot. The hour and day axes are scaffolding—labels and grid lines that echo the punch-card charts I was building at the time—not a literal mapping from timestamp to position. Swap in real (hour, weekday) pairs and the same hex layer becomes a temporal density map without changing the core idea.

What a hex scatterplot is

Think of it as a 2D histogram with hexagonal buckets:

Piece	Role
Points	Raw observations (x, y)—events, samples, sensors
Hex grid	Fixed cells; each point belongs to exactly one hex
Fill color	How many points landed in that cell (or a derived stat)
Stroke	Optional edges so cells stay visible when counts are low

Unlike a heatmap on a rectangular grid, hex bins pack without gaps and feel less “spreadsheet.” Neighbors share edges evenly; your eye reads blobs and ridges instead of chunky squares.

It is not a substitute for exact point inspection—you lose individual outliers unless you highlight them. It is the right first pass when the question is where is the mass?

Why hexagons beat naive dots

Overplotting is the enemy. Transparency helps until it does not; jitter lies about position; sampling hides rare events.

Hex binning:

• Aggregates locally so dense regions read as one saturated cell
• Preserves geography better than arbitrary rectangular bins on skewed clusters
• Scales visually with a single color channel—no legend of fifty overlapping alphas

In the pen, each hex’s fill comes straight from the bin’s population:

var hexbin = d3.hexbin()
  .size([width, height])
  .radius(20);

// ...

.style("fill", function(d) {
  return color(d.length);
});

d.length is the count; color is a linear scale from blue (quiet) to #E74C3C (busy), interpolated in Lab so the ramp does not muddy in the middle:

var color = d3.scale.linear()
  .domain([0, 20])
  .range(["blue", "#E74C3C"])
  .interpolate(d3.interpolateLab);

Radius 20 is the knob: smaller hexes, finer detail, more visual noise; larger hexes, smoother fields, less precision. There is no universal answer—tune it for your screen and your question.

The stack (CodePen, D3 v3 era)

• D3 v3 — scales, axes, SVG paths
• d3.hexbin — Mike Bostock’s layout plugin; .hexagon() path generator included
• Clip path — hexes clipped to the plot area so the honeycomb does not bleed into the margin
• Radial gray background — CSS gradient behind the SVG so the chart floats like a widget on metal

The drawing loop is short: generate points, hexbin(points), enter/update paths with transform to each bin centroid. No canvas, no WebGL—just SVG and arithmetic. That was the point in 2013: shareable, forkable, zero build step.

Hex bin vs cousins

Approach	Best for
Raw scatter	Few hundred points; every dot must be visible
2D histogram (square bins)	Fast aggregation; axis-aligned dashboards
Hex scatter / hexbin	Medium-to-large clouds; smooth spatial density
Kernel density (contours)	Continuous “hills”; less literal about counts
Point map (geo)	Lat/long on a basemap—not interchangeable, but often paired with hex for city-scale counts

Reach for hex when you have too many points for ink but still want people to point at a neighborhood on the plane. Reach for contours when the story is “probability landscape.” Reach for raw scatters when you have twenty dots and a meeting in ten minutes.

Pairing with time (the punch-card connection)

The axes in this pen borrow the day × hour language of a punch card: white tick grid, 12am–11pm along the bottom, weekdays up the side. In production you would:

1. Parse timestamps into weekday and hour (mind the time zone).
2. Map those to x and y with d3.scale—not random normals.
3. Run the same hexbin and color by count or by mean of a third variable.

Suddenly the honeycomb answers: Tuesday afternoons are thick; Sunday morning is cool. The geometry does the compression; the color does the emphasis.

What I would change today

If I refreshed the pen now:

• D3 modules — d3-hexbin as an import; drop the v3 global and d3.svg.axis
• Real data — fetch events, bin in the client or pre-aggregate on the server
• Tooltips — mouseover with count (the handlers are commented out in the original—easy win)
• Accessible color — sequential palette tested for color vision; document the count range in the title
• Radius control — slider bound to hexbin.radius so readers feel the bias/variance tradeoff
• Align data to axes — either map points through the scales or strip the decorative grid

None of that changes the lesson: when points stack, bin them; when bins tessellate, hexagons are a beautiful choice.

The lesson I still keep

The best density charts do not ask you to count dots. They ask you to feel weight—where the cloud is heavy, where it thins, where a hot hex might deserve a follow-up query.

This pen was never meant to be a production dashboard. It was a love letter to hexbin: a few lines of D3, a radial backdrop, and a hive that turns chaos into pattern. Fork it, pour your logs or coordinates into the bin, and watch the red cells tell you where your system actually lives.

---

CodePen: codepen.io/maggiben/pen/AgjzOZ
